Integrate CompanyCam + Autodesk Construction Cloud

This integration allows CompanyCam and Autodesk Construction Cloud to communicate automatically. All photos and documents added in CompanyCam will sync to Autodesk instantly, and all Projects created in Autodesk Construction Cloud will instantly sync to CompanyCam.

In this article

Before you Start

What is Autodesk Construction Cloud?

Autodesk Construction Cloud connects teams and project data from design to done. Reducing risk, protecting profits, and increasing predictability.

How it works

Once integrated, all of your active Projects in Autodesk Construction Cloud will automatically sync over to CompanyCam as Projects. Then, anytime you add a new project in Autodesk, a new Project in CompanyCam will be created automatically. This CompanyCam Project will also have an Autodesk Construction Cloud Label attached.

If you add Photos or Documents to this CompanyCam Project they will automatically go back into the Autodesk Construction Cloud project under the "Files" tab. A CompanyCam folder will be created in this tab to give you easy access to your Photos and Documents captured in CompanyCam.


1. Once integrated, create a Project in AutoDesk Construction Cloud.


2. Wait 3-5 minutes and you should see a matching Project in CompanyCam with an Autodesk Construction Cloud Label.

3. Take Photos and Upload Documents in this CompanyCam Project as normal.


4. Those Photos and Documents will live in this Autodesk Entry under Files and have CompanyCam folders making it easy to see which content was created from CompanyCam.

Setup

    1.  Open CompanyCam. On the left hand side, under Resources, select Integrations.

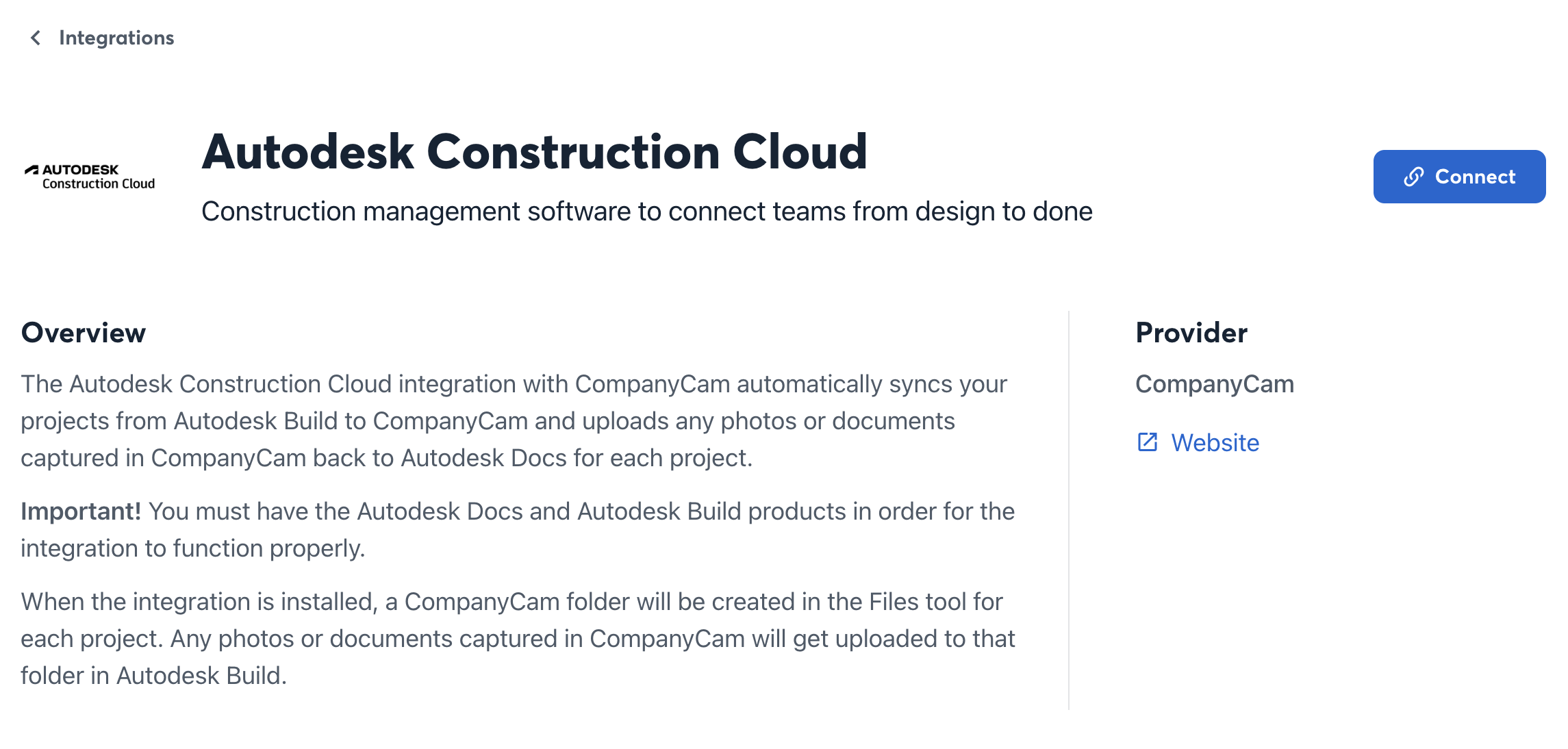

    2. Look for the Autodesk Construction Cloud card under the different options and select it. Once selected click Connect in the top right.
    3. Agave is used to Connect CompanyCam and Autodesk Construction Cloud click Continue. 4. This step is verifying you have an Autodesk Construction Cloud account and will have you login if necessary. Just select the green box "Installed and Log in with Autodesk Build."

    5. Autodesk Construction Cloud will have you confirm your hub by selecting the black box.

    6. Once confirmed that's it! You are now connected. To verify the connection look for the "Integration Connected" box in the top right and your Autodesk Construction Cloud should show as Connected.


If you need support integrating or have any issues with the integration reach out to support@companycam.com

Want to make work flows even easier? Now that you've got your CRM up and running, check out other integration opportunities!
  • Get measurements with Hover.
  • Create quotes with SumoQuote.
  • Organize project dates with TeamUp.
  • Map your project areas with DroneDeploy.
  • Don't see the integration you're looking for? Check out Zapier and their 3k+ partnering apps!

Still need help? Contact Us Contact Us
